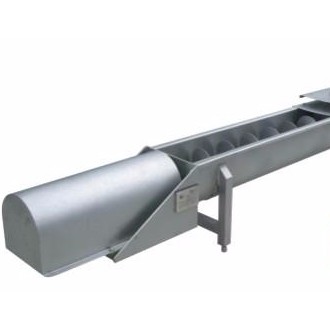

螺旋輸送機利用電機帶動螺旋回轉，利用旋轉的螺旋將物料在固定的外殼內推移而進行物料的輸送。有水平式、傾斜式及垂直式三種形式，采用 U 型或O型殼體作為承載體。適用于果蔬及果渣的輸送，具有結構簡單、截面積小，便于封閉輸送，可多點加料或卸料等優點。
| 技術參數 |
| 名稱 Name | 配置說明 Description | 輸送量（以蘋果為例） Transportation capacity | 電功率（kw） Power | ||
| 線速度 line speed | 輸送量 Capacity | ||||
LXSS-U150 | 殼體及螺旋葉片均為 SUS304，無極手動調速 Outer shell and the spiral are all made of SUS304 stainless steel, speed can be stepless adjustable | 50-112rpm | 4-8m3/H | 2-5m | 0.75 |
| 6-10m | 1.5 | ||||
| 11-15m | 2.2 | ||||
| LXSS-U200 | 50-100rpm | 7-14m3/H | 2-5m | 1.5 | |
| 6-10m | 3 | ||||
| 11-15m | 4 | ||||
| LXSS-U250 | 45-90rpm | 13-24m3/H | 2-5m | 2.2 | |
| 6-10m | 4 | ||||
| 11-15m | 5.5 | ||||
| 16-20 | 7.5 | ||||
| LXSS-U300 | 40-80rpm | 16-32m3/H | 2-5m | 3 | |
| 6-10m | 5.5 | ||||
| 11-15m | 7.5 | ||||
| 16-20 | 11 | ||||
| LXSS-U350 | 36-72rpm | 26-52m3/H | 2-5m | 4 | |
| 6-10m | 7.5 | ||||
| 11-15m | 11 | ||||
| 16-20 | 15 | ||||
| LXSS-U400 | 36-72rpm | 30-60m3/H | 2-5m | 5.5 | |
| 6-10m | 11 | ||||
| 11-15m | 15 | ||||
| 16-20 | 18.5 | ||||
